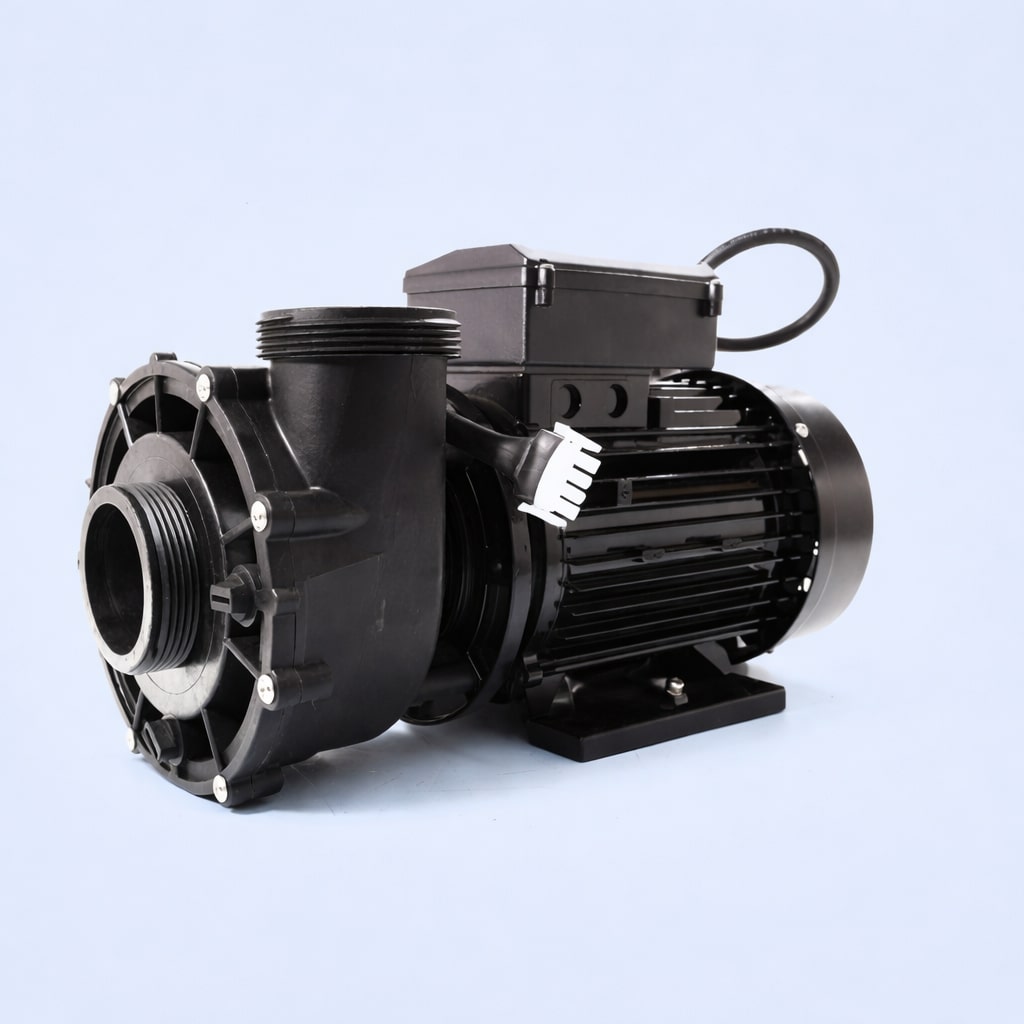

LX LP200 Single-Speed 2HP Pump

LP200 Pump single speed 2HP - technical specifications

• Power: (2.0 HP)
• Amps: 7.0
• Volts: 230
• Hz: 50
• Capacitor: 30 µF
• Speed: 2900 rpm
• Maximum flow rate: 535 litres/minute

Dimensions (without fittings)

• Length: 385 mm
• Width: 200 mm
• Height: 220 mm

Plumbing connections
The pump comes with unions and O-rings for 2.0 inch pipes

Cable and plug
The LP200 Pump single speed 2HP massage pump is delivered pre-cabled some batches have plugs some without plug. If you are replacing an existing pump, you will be able to re-use your existing plug. There is a wiring diagram for connecting it up on the inside of the cover of the water-resistant pump electrical box.
