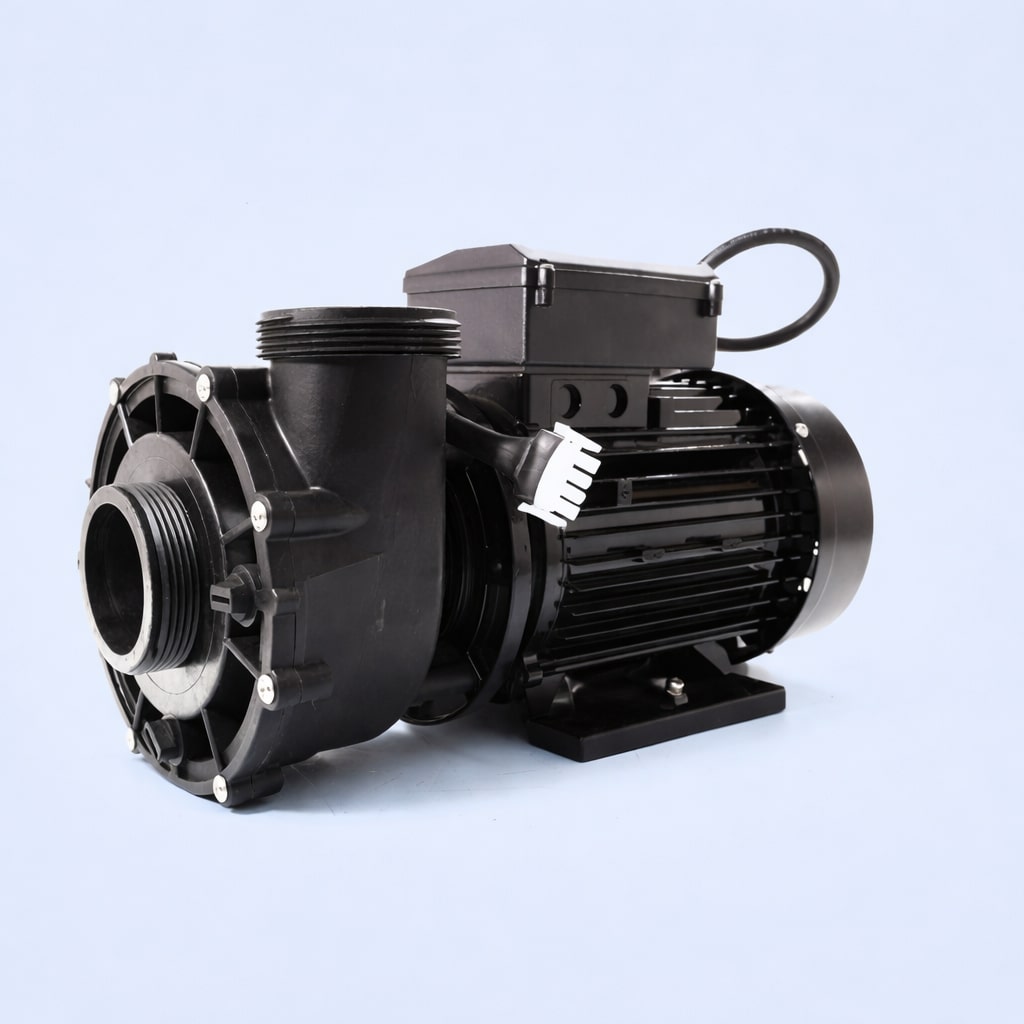

LX LP250 Single-Speed 2.5HP Pump

LX LP250 Single-Speed 2.5HP Pump

£299

LP250 Pump single speed 2.5HP - technical specifications

  • Power: (2.5 HP)
  • Amps: 8.0
  • Volts: 230
  • Hz: 50
  • Capacitor: 40 µF
  • Speed: 2900 rpm
  • Maximum flow rate: 600 litres/minute

Dimensions (without fittings)

  • Length: 385 mm
  • Width: 200 mm
  • Height: 220 mm

Plumbing connections
The pump comes with unions and O-rings for 2.0 inch pipes

Cable and plug
The LP250 Pump single speed 2.5HP massage pump is delivered pre-cabled some batches have plugs some without plug. If you are replacing an existing pump, you will be able to re-use your existing plug. There is a wiring diagram for connecting it up on the inside of the cover of the water-resistant pump electrical box.
