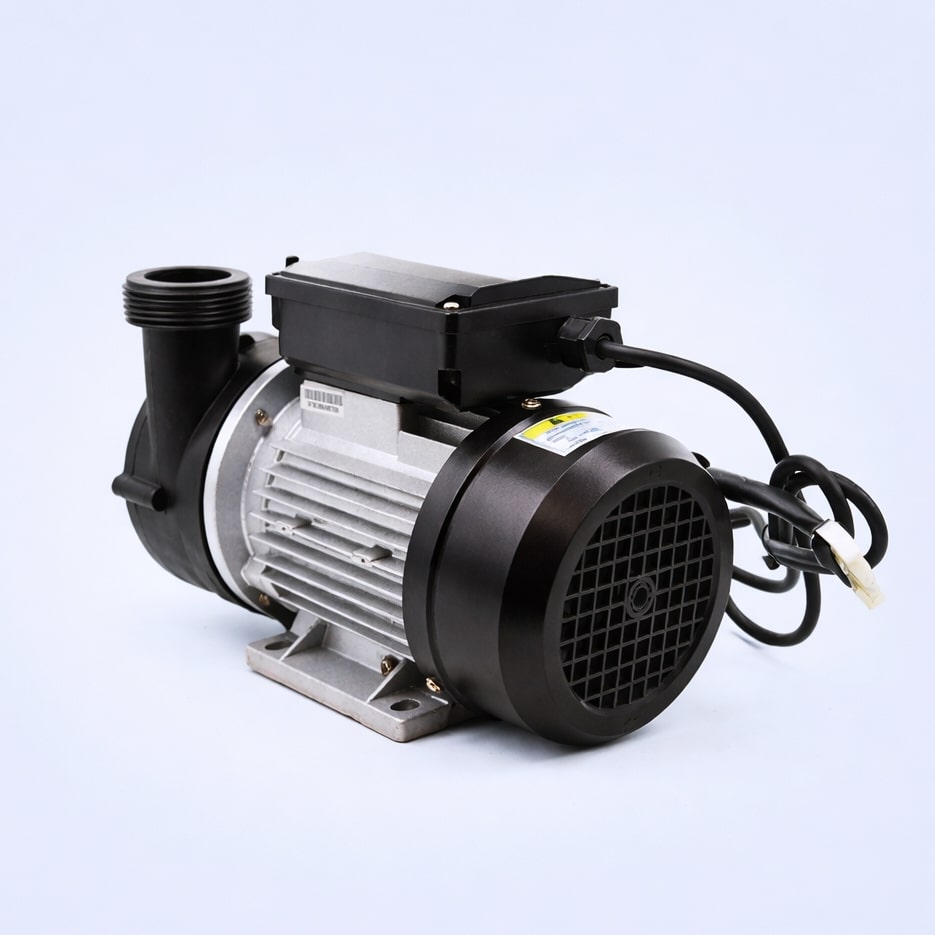

LX WTC50M Circulation Pump

LX WTC50M Circulation Pump

£249
£249
Shipping calculated at checkout.
The LX WTC50M is a single-speed, 0.33 HP circulation pump designed for continuous operation in hot tubs and spas.

Technical specifications:

  • Power: (0.33 HP)
  • Amps: 1.0
  • Volts: 230Hz
  • Speed: 1400 rpm
  • Maximum flow rate: 240 litres/minute
  • Capacitor: 7 µF

Dimensions (without fittings)

  • Length: 300 mm
  • Width: 165 mm
  • Height: 200 mm

Plumbing connections
Thread diameter: 62 mm (1.5-inch MBT)
Pump unions and O-rings for 1.5 inch pipes are supplied.

Cable and plug
The LX WTC50M is delivered pre-cabled some batches have plugs some without plug. If you are replacing an existing pump, you will be able to re-use your existing plug. There is a wiring diagram for connecting it up on the inside of the cover of the water-resistant pump electrical box.
